Industrial heating processes demand burner management solutions that are not only safe and reliable, but also adaptable to changing application requirements. Many traditional burner safeguard systems require dedicated hardware for each burner, limiting flexibility and increasing engineering time, panel space, and overall system complexity.

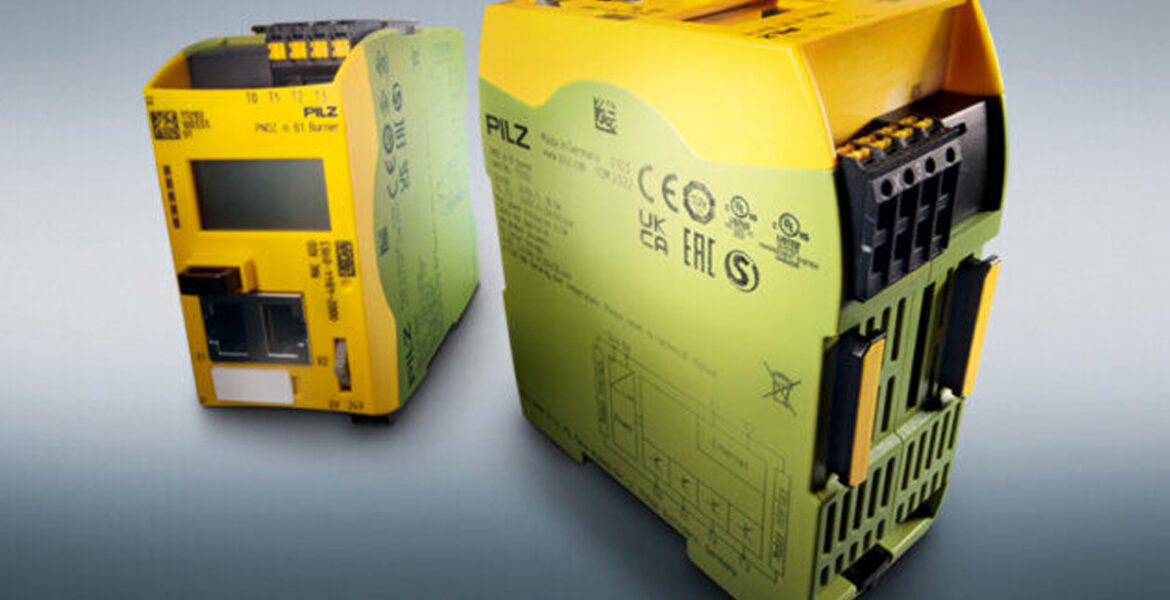

The Pilz mB1 Burner Management System, built on the proven PNOZmulti 2 platform, offers a modern alternative. This modular, software-configurable solution combines burner management and machine safety into a single control architecture, helping OEMs and end users simplify system design while maintaining high levels of safety and compliance.
For more information, download the product overview PDF
The Importance of Burner Management Systems
Burner management systems play a critical role in the safe operation of fuel-fired equipment such as furnaces, ovens, boilers, thermal oxidizers, and other thermal processing systems. They are responsible for managing startup sequences, verifying flame presence, monitoring burner performance, and executing safe shutdown procedures when required.
A properly designed system helps prevent dangerous conditions caused by fuel accumulation or flame failure, reducing risks to personnel, equipment, and production processes.
The Pilz mB1 Burner Management System provides comprehensive oversight throughout the burner lifecycle, from pre-purge and ignition through normal burner operation and shutdown.
Benefits of the Pilz mB1 Burner
Simplified Engineering and System Design
The modular architecture of the Pilz system enables users to implement burner management and machine safety within a single platform. This can significantly reduce design effort for applications requiring:
- Emergency stop functions
- Safety gate monitoring
- Light curtain integration
- Additional application-specific safety functions
Enhanced Productivity
Built-in diagnostic capabilities provide valuable operating information that helps speed troubleshooting, minimize downtime, and improve overall system availability.
Reduced Hardware Costs
A single base unit can accommodate up to 12 burner function blocks, helping reduce the number of dedicated controllers required for multi-burner applications.
Easy Integration
The mB1 Burner platform supports connectivity to a wide range of automation systems and industrial communication networks, making it easier to integrate into existing control environments.
Certified Safety and Compliance
The system utilizes tested and certified hardware and software components designed to meet relevant international burner and machinery safety standards.
An optional PNOZ m EF 4DI4DORD expansion module provides four safe, diverse relay outputs in accordance with EN 50156-1, enabling reliable control of burner safety valves.
Common Industries and Applications
The Pilz mB1 Burner Management System is used across many thermal processing industries, including:
Food & Beverage
- Industrial baking ovens
- Wafer production equipment
- Frying systems
Metals Processing
- Roller hearth furnaces
- Annealing operations
Chemical & Pharmaceutical
- Thermal oxidizers
- Process heating systems
Energy & Utilities
- Steam boilers
- Biomass burner applications
Automotive Manufacturing
- Paint drying systems
- Industrial curing ovens
Modernize Your Burner Control Strategy
Whether you’re designing new equipment or upgrading an existing thermal process, the Pilz mB1 Burner Management System can help improve safety, reduce engineering complexity, and provide the flexibility needed for future expansion.
To learn more about the Pilz mB1 Burner Management System, contact your Account Manager or Contact Us today!
